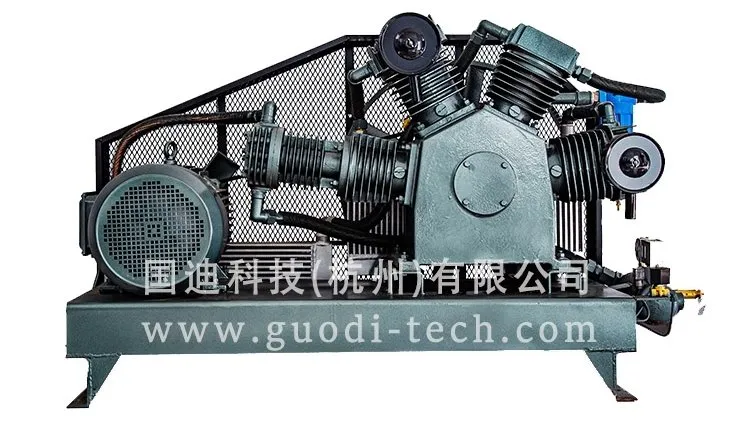

A compressor that operates by moving the piston back and forth in the cylinder via the connecting rod is known as a reciprocating piston compressor. This type of compressor is used to compress gas and then deliver it to its intended destination.
Machine Parameters:
TYPE | Volume Flow | Exhaust pressure | Bore diameter | Rated Power | Rotating speed | Air tank | Weight |
（Nm3/min） | （bar） | (mm) | （KW） | （rpm) | （L) | (KG) | |
WW-0.3/25 | 0.35 | 25 | 90*2+55*1 | 7.5 | 700 | 180 | 285 |
WW-0.8/16 | 0.80 | 16 | 110*2+80*1 | 7.5 | 700 | 300 | 345 |
WW-0.7/20 | 0.70 | 20 | 110*2+70*1 | 7.5 | 700 | 300 | 360 |
WW-1.2/16 | 1.20 | 16 | 125*2+85*1 | 11 | 700 | 300 | 395 |
WW-1.0/20 | 1.00 | 20 | 125*2+74*1 | 11 | 700 | 300 | 400 |
WW-1.5/16 | 1.50 | 16 | 130*2+85*1 | 15 | 740 | 300 | 425 |
SW-2.0/16 | 2.00 | 16 | 130*3+88*1 | 18.5 | 740 | / | 415 |
SW-2.0/20 | 2.00 | 20 | 130*3+88*1 | 22 | 740 | / | 430 |

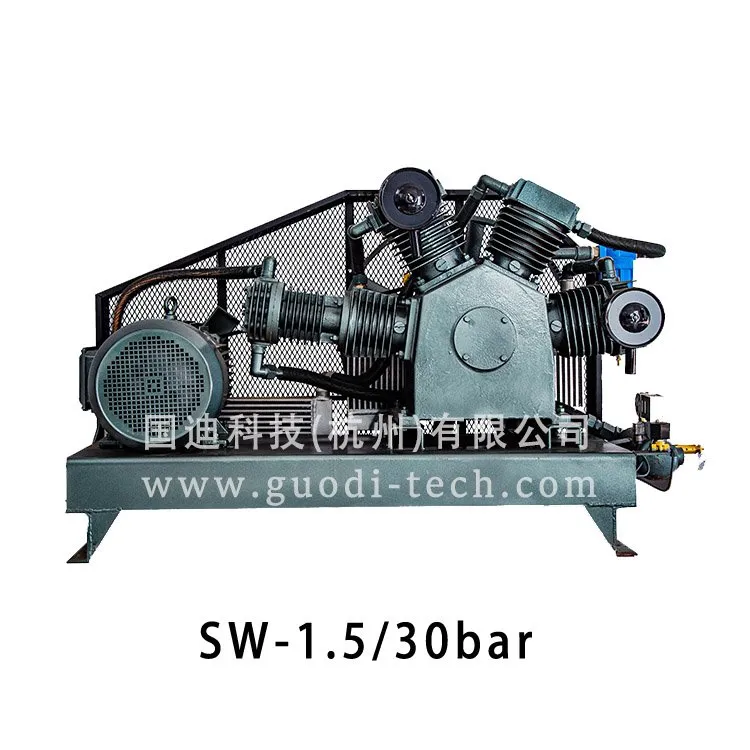

SW-1.5/30 | 1.50 | 30 | 130*2+100*1+55*1 | 18.5 | 740 | / | 430 |
SW-1.4/40 | 1.40 | 40 | 130*2+100*1+50*1 | 18.5 | 740 | / | 440 |
Product advantages:
(1) Adopt the self-designed fourth-generation high-efficiency compressor main engine, and its air valve structure adopts a reed (ring) valve structure, which improves the efficiency by 8-10% and saves electricity by 20% compared with the traditional air valve.
(2) The main engine of each machine has undergone more than 80 inspections to ensure the high precision required in the design.
(3) It has multiple protections such as pressure switch and safety valve to prevent overpressure operation.
(4) The design of the whole machine is reasonable and exquisite, making it flexible to move, simple to operate and easy to maintain.
(5) Balanced operation, low noise, high reliability, long life and low maintenance costs.
Use venue selection:
The reciprocating piston compressor is highly integrated and requires no special installation. Just place the compressor in a place with clean air and good ventilation. For users with poor use environment, such as foundries, steel mills, wood factories, cement factories, etc., please check regularly and keep the air filter clean.
Who we are?
Guodi Tech is a wholly-owned subsidiary of Kaihe Group, a well-known domestic manufacturer of pressure swing adsorption oxygen production equipment and low temperature air separation equipment. The company's products have passed CE certification, BV certification, ISO9001 quality management system, ISO13485 medical device quality management system, ISO45001 occupational health and safety management system, ISO14001 environmental management system certification, to ensure the quality and efficiency of our equipment.
